ESRI ArcGIS

ESRI ArcGIS?

ESRI ArcGIS? Interface

ETAP's ESRI ArcGIS Interface allows you to easily convert your system model from ESRI ArcGIS to ETAP Distribution View transferring all the electrical data and Geospatial Information.

Key Features

  • Geospatial model preview
  • Customized element and property universal mapping for all feature classes
  • Interpreting ESRI Domain code and allow customized Mapping
  • Interpret the ESRI Geometric Network and make connections in ETAP
  • Selecting area to convert partial model
  • Create ETAP Geospatial Model
  • Incrementally import the model changes including data changes or connection changes
  • Intelligent Online Auto-Incremental import

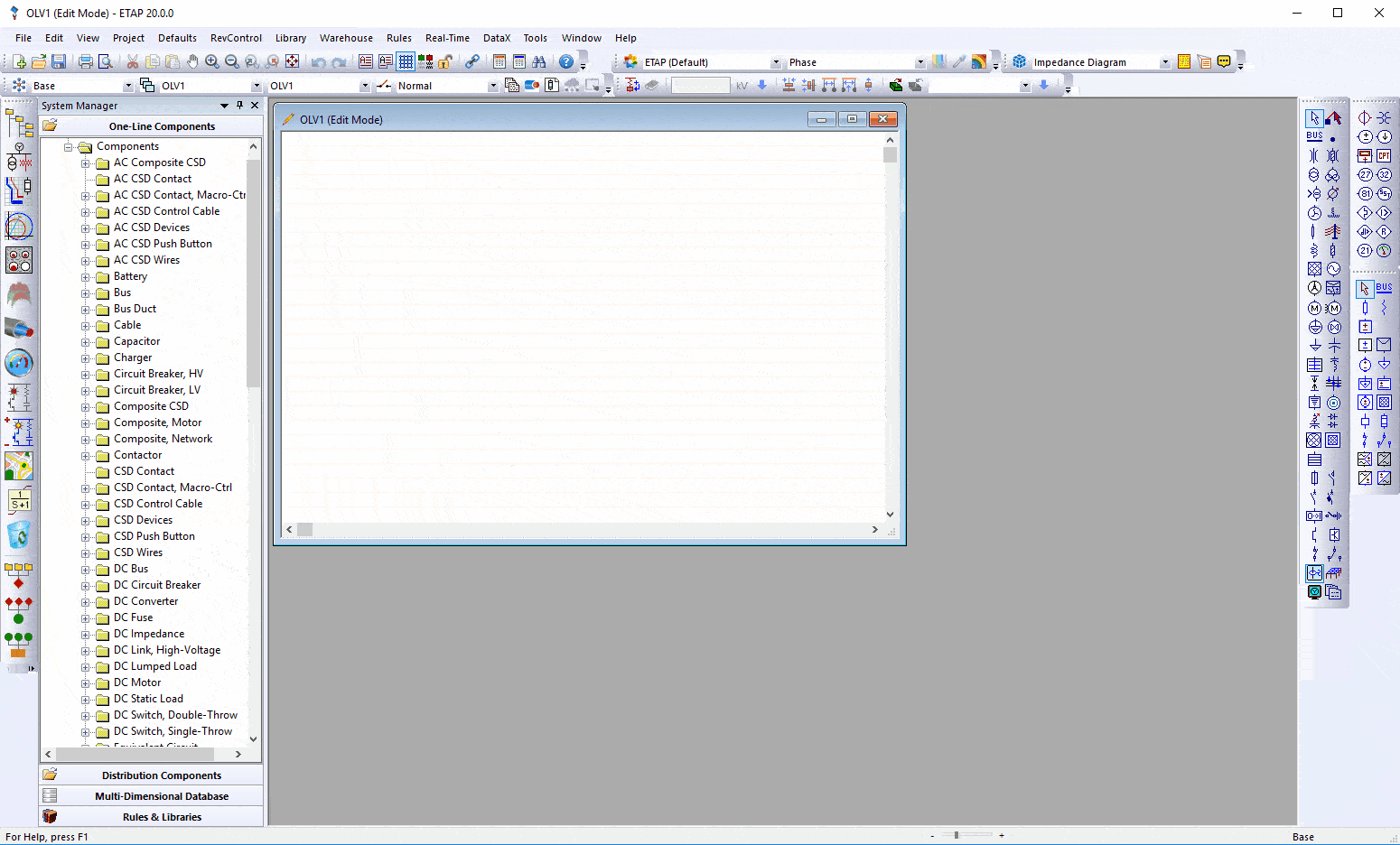

ESRI Import and ULF

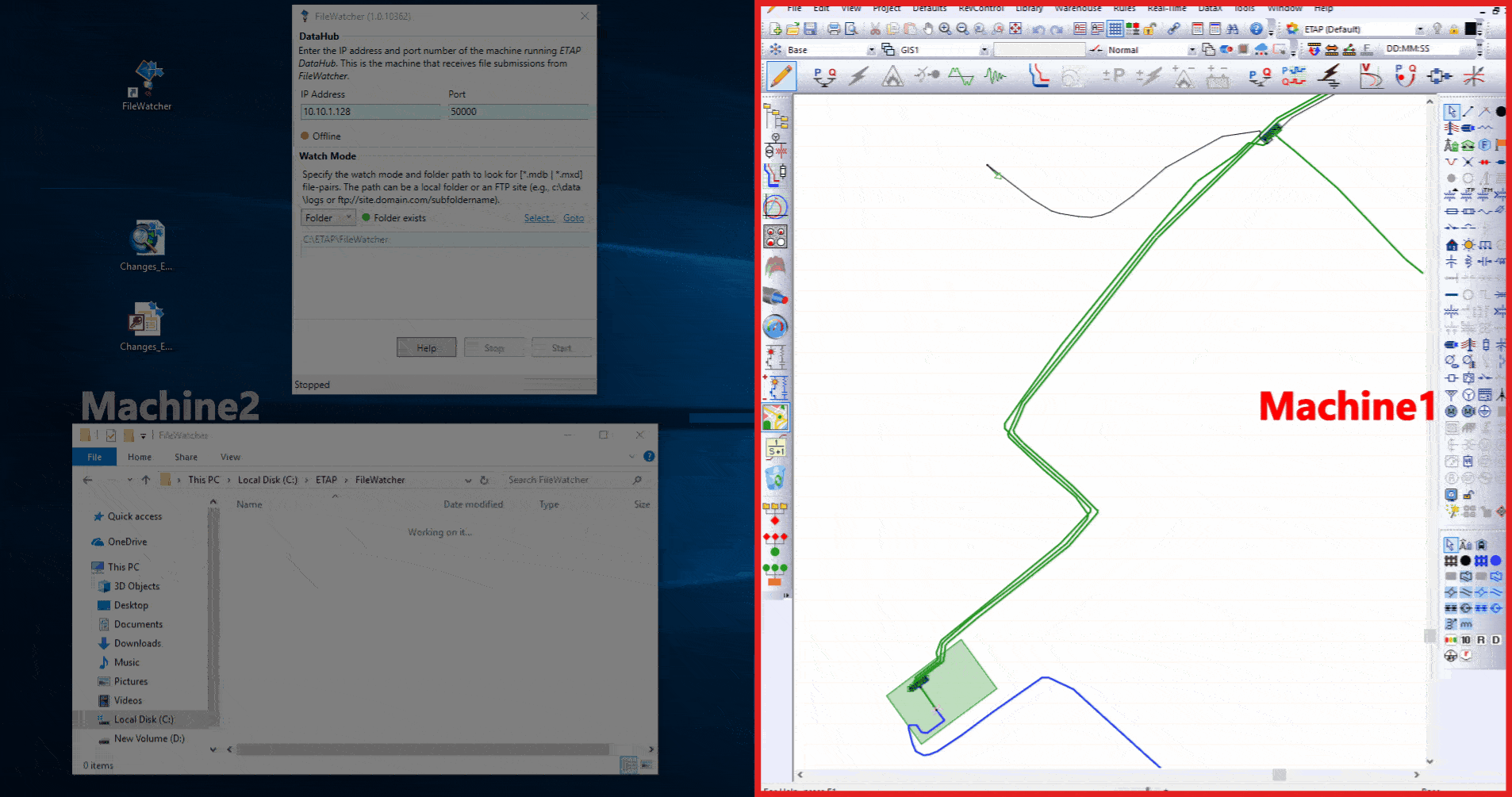

ETAP ArcGIS – Auto-Incremental Import

  • ETAP supports incremental actions including, Add, Delete and Modify.
  • ETAP allows user defined FTP Location to store incremental ESRI files.
  • ETAP allows user defined local folder to store incremental ESRI files.
  • ETAP DataHub watches the FTP/Folder and initials the incremental automatically.
  • Incremental changes reflect to the Geospatial Model automatically.
  • ETAP allows user to control the start and stop of incremental import.
ETAP ArcGIS Auto-Incremental Import

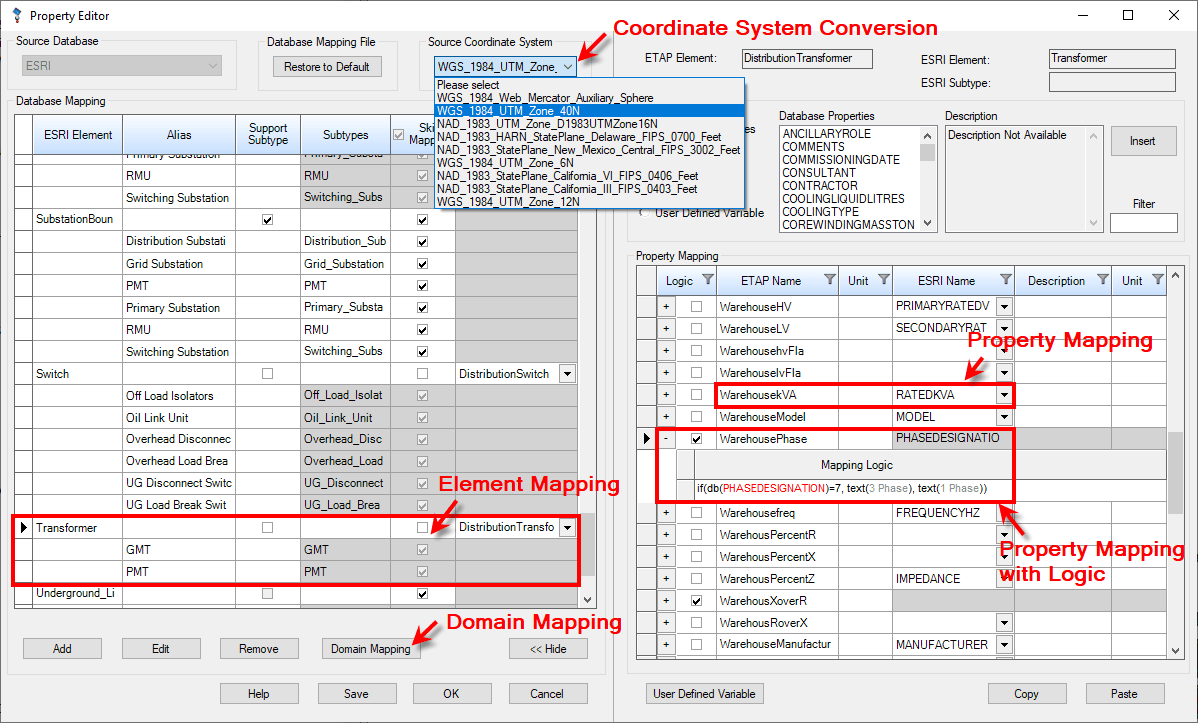

ESRI ArcGIS – ETAP Universal Mapping

  • ETAP makes use of the information available in ESRI database for automatically populating element properties in the Universal Mapping table
  • ETAP allow customized mapping from ESRI components to ETAP elements. ESRI subtypes are supported as well.
  • ETAP converts the original coordinate system conversion to be compatible with ETAP GIS View automatically.
  • ETAP allows customized properties mapping for all ESRI attributes. Logic can be applied.

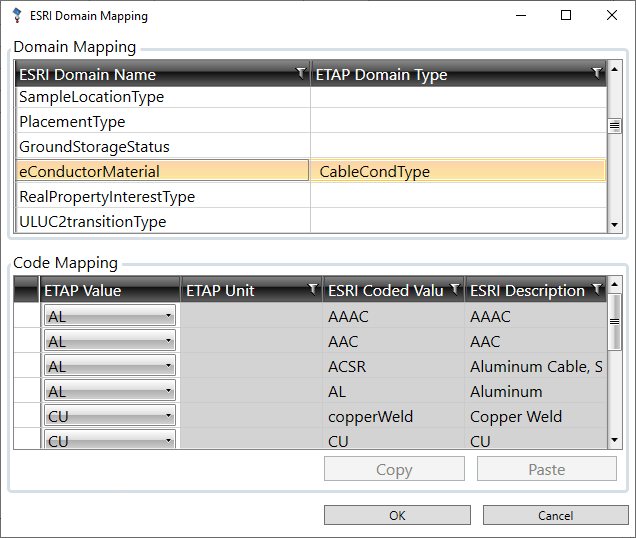

  • ETAP provides the capability to map ESRI Domain to ETAP properties.
ETAP Universal MappingDomain Mapping
