FlickerMeter?

Evaluate Flicker Levels Against Emission Limits?

FlickerMeter

Improve Power Quality with Flicker Evaluation

ETAP’s FlickerMeter evaluates flicker compliance against emission limits. Flicker calculations comply with IEC 61000-4-15, which is the standard for electromagnetic compatibility (EMC).

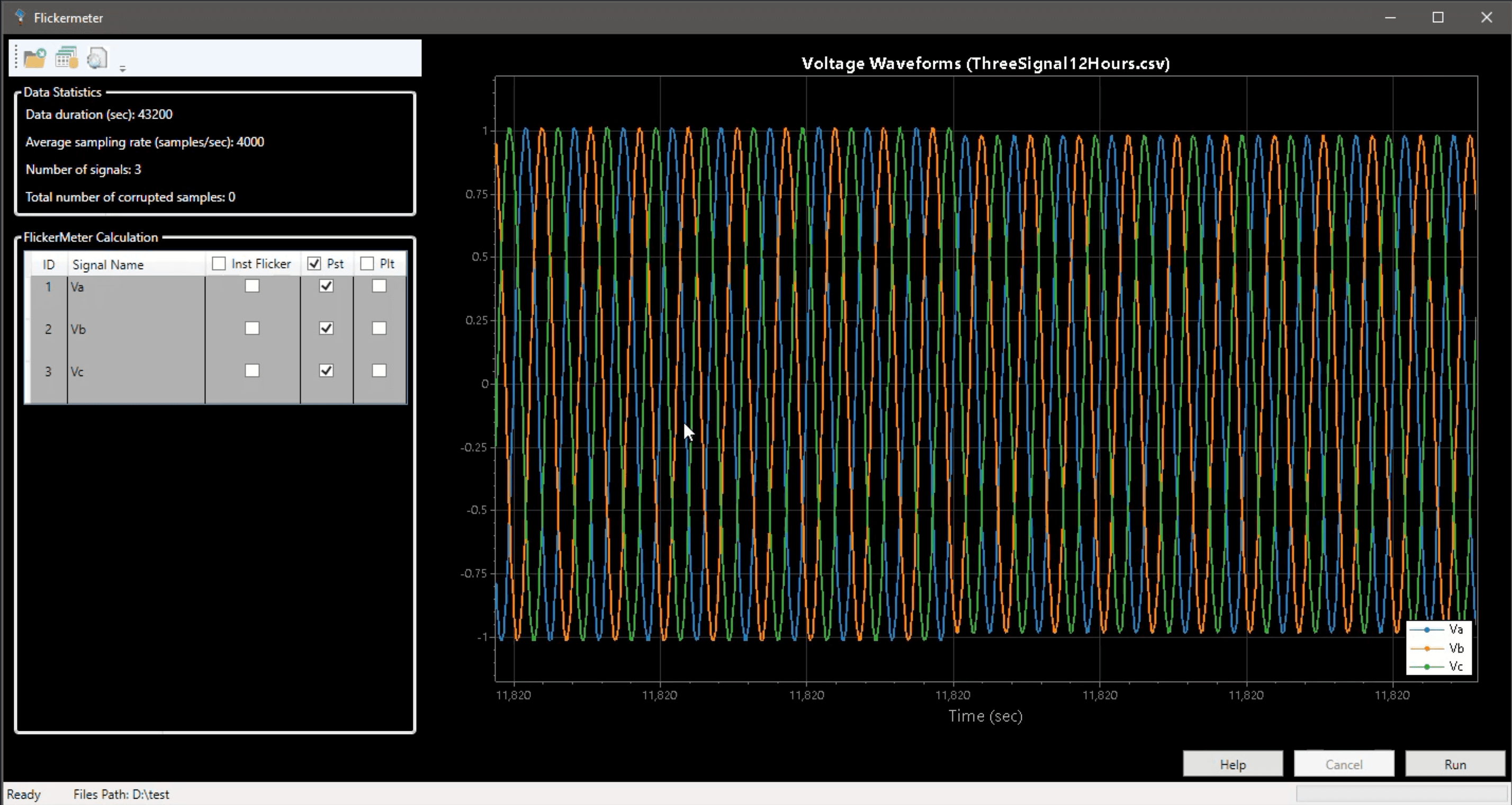

FlickerMeter App
FlickerMeter is part of the Power Quality applications in ETAP. FlickerMeter allows importing CSV-formatted data files and analyzes up to 20 signals at each run, to evaluate flicker compliance against emission limits.
Flicker calculations comply with IEC 61000-4-15 which is the standard for electromagnetic compatibility (EMC) and the calculation provides instantaneous, short-term (PST), and long-term (PLT) flicker indices based on a voltage waveform loaded into the calculator.
The purpose of this analysis is to determine the level of flicker in a voltage waveform originating from various starting and stopping actions of equipment and continuous time-varying loads within a system with, for example, induction machines or arc furnaces.

Key Features

  • Instantaneous, short-term (PST), and long-term (PLT) flicker indices?
  • Compliance with electromagnetic compatibility (EMC) - IEC 61000-4-15?
  • Fast-responsive built-in plotting tool ?
  • Signal processing capability?
    • Accepts CSV input voltage waveforms?
    • Up to 20 signals can be analyzed at once?
    • Handles up to 500 million data points (6.5 GB file size)?
    • Accepts waveform data with 3 common delimiters (comma, space, semicolon) ?
    • Input data statistics ?
    • Handles both 60Hz and 50Hz input data?
    • Automatically fills in NaN or non-numeric values in the input data

Videos

Learn how the ETAP FlickerMeter Calculator improves power quality

FlickerMeter is part of the Power Quality applications in ETAP. FlickerMeter allows importing CSV-formatted data files and analyzes up to 20 signals at each run, to evaluate flicker compliance against emission limits. Flicker calculations comply with IEC 61000-4-15 which is the standard for electromagnetic compatibility (EMC) and the calculation provides instantaneous, short-term (PST), and long-term (PLT) flicker indices based on a voltage waveform loaded into the calculator.
